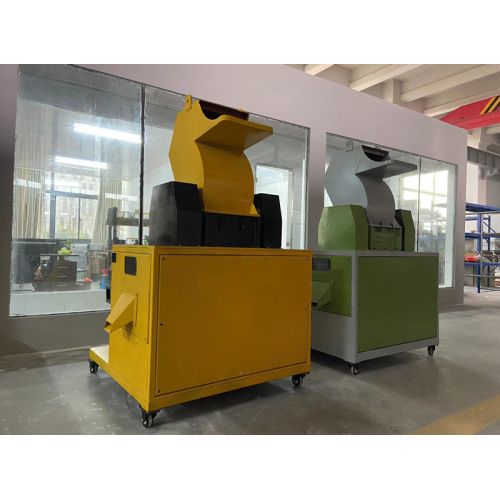

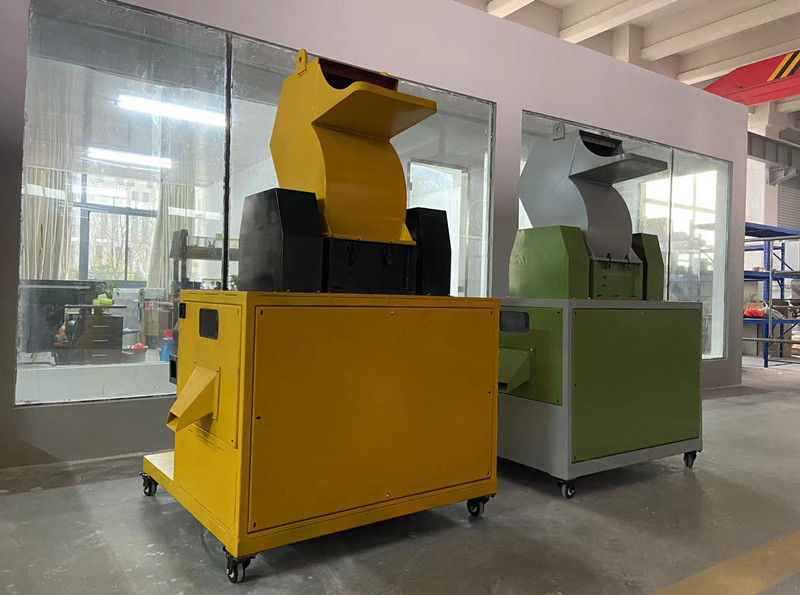

Small Cable Granulator and Separator

Mini copper wire granulator is a comprehensive processing equipment for recycling automotive wires, communication cables and other kinds of miscellaneous wires and cables. Copper granulator separates waste copper wire, from the plastic of the insulated wire. The machine uses a dry physical crushing method. This prevents contamination while making the extraction process as simple as possible. The price of this copper granulator is very friendly to individuals!



Machine Specifications:

Cable granulator and separator,small structure,it grinds and separates rigid cables and flexible wires.
The most amazing innovation is, this is driven with single phase power 220V or 230V or 240V.

Capacity	20 to 50 kg per hour.
Machine weight	600kg
Machine size	1100mm * 1100mm * 1800mm, with 4 wheels at the bottom
Tool	D2 material is used
Technology	Italy MG
Screen size	Each set of OTD50 have 2 screens,2mm and 2.5mm
Cable Range	Rigid ＜10mm, Flexible ＜15mm
Copper particle size	2mm to 3mm
Delivery time	Need to know your country or region!



Workflow

Put the waste wire or cable through the top entrance of the machine, use the shredder to shred the wire and cable to 2mm to 3mm particle size (only when it is this small, the plastic skin and copper particles will be peeled off from each other). Then using the principle of specific gravity vibration, the materials with different specific gravity will be separated from each other, and then the particles with the same specific gravity will flow out from the same outlet, and you will get plastic particles and copper particles.



Application

Some recyclers or electricians have small amounts of cable and no space to store it. Perfect for this small copper wire granulator with a small footprint and affordable price. This model OTD50 is a very good choice. And the pricing is more suitable for personal use.



Small Copper Granulator Features

Low power consumption,main motor is 3kW,save enegry;
1 phase electrisity, workshop is not necessary;
Small dimensions,save installation space;
Both rigid cable and flexible wires are acceptable.



Advantages of Optima Cable Granulator

1. The whole system adopts Italian single-shaft shredder for pre-shredding.

1.1) The current induction feeding mode is adopted, which is more suitable for the crushing of solid materials;

1.2) The maintenance cost is greatly reduced compared with the double shaft shredder;

1.3) It is easy to maintain, no need to disassemble the motor, reducer and rotor to replace the blade;

1.4) The shredder has three control modes: manual, automatic, and pulse pushing. A variety of pushing methods can meet the needs of shredding different materials;

1.5) The sieve can be added to effectively control the size of the shredded materials.



2. The system adopts two-stage dust removal, which can separate most of the dust through a cyclone, effectively protecting the service life of the pulse dust bag.



3. The crusher adopts advanced German structure.

3.1) The structure of rotor and blade is more suitable for cutting wires and cables;

3.2) The gap between the movable blade and the fixed blade can be locked to effectively control the loss of copper powder caused by the expansion of the gap;

3.3) Using 7 groups of 14 movable blades to effectively increase the output of secondary crushing;

3.4) The opening and closing of the upper chamber cover and the screen bracket of the crusher are all hydraulically controlled and automatically controlled.





4. The vibrating screen adopts Italian technology.

4.1) Only guarantee the vibration of the sieve, effectively reduce the vibration source to ensure the stability of the machine;

4.2) The air inlet of the vibrating screen adopts filtration technology to ensure that the air entering the bottom of the vibrating screen is relatively clean and prolong the service life of the vibrating screen;

4.3) The vibrating screen adopts an upper and lower fixed structure, which is easy to replace the screen;

4.4) The unique weaving process of the sieve of vibrating screen, the thin copper will not block the sieve.
