Aluminum wire rod rewinding machine
Aluminum wire rod rewinding machine
Product Description
Basic Introduction
| Usage: | Rewinding | Material 1: | Aluminium Rod |
|---|---|---|---|
| Dia: | 9.5-12.5 | Coil Weight: | 3000kg |
| Diameter Of Coiled Aluminum Rod: | Φ 1400*560*900mm | Motor: |
Take-up power: 15kW Frequency Motor Laying-out power: 2kw Servo Motor Hydraulic station power: 2.2kw |
| HighLight: |
wire winding machine,automatic winding machine |
||

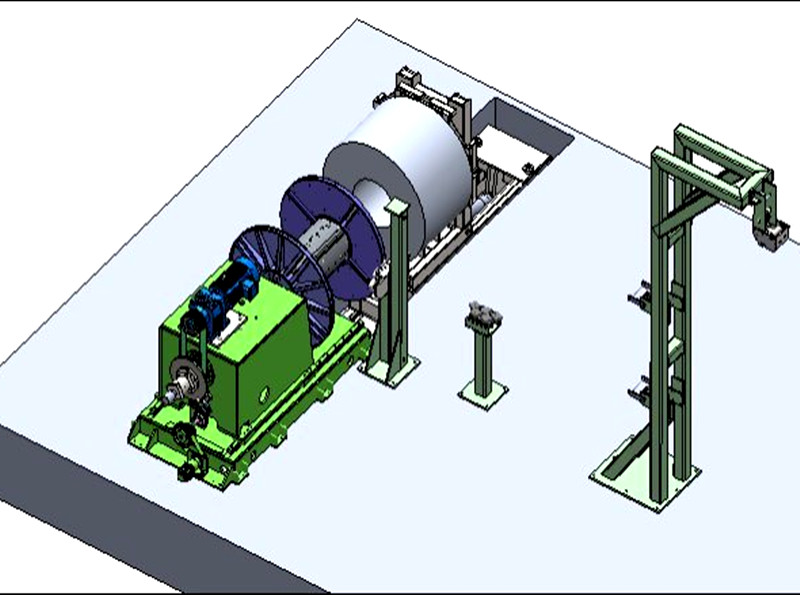

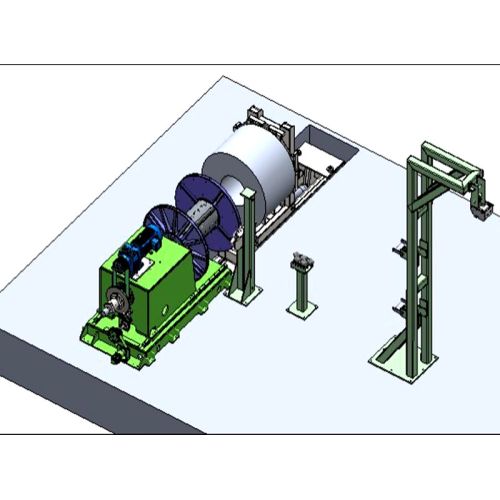

Application of Aluminum Rod Rewinding Machine
The Wire Winding Machine is used for rewinding aluminum rods with a diameter of 9.5mm and 12mm. Winding,laying-out,package turning and other actions are intelligently controlled by PLC. The laying-out is driven by overall movement of the servo take-up machine, ensure the aluminum rods after the coiling are arranged orderly, reduce the volume so that easy to transport and store.
Aluminum Rod Rewinding Machine List
| Paying-off supporter: | 1 set |
| Horizontal straightening machine: | 1 set |
| Vertical straightening machine: | 1 set |
| Taking-up: | 1 set |
| Package turning: | 1 set |
| Electrical cabinet: | 1 set |
Main Technical Parameters
| Expansion and contraction core (outer diameter * inner diameter * width): | Φ 1400*560*900mm |
| Take-up speed: | 200m/min |
| Take-up diameter: | 9.5mm, 12mm |
| Form of laying-out: | overall movement of the servo take-up machine |
| Bearing weight: | 3000kg |
| Max. Dia. of expansion and contraction: | Φ560mm |
| Min. Dia. of expansion and contraction: | Φ530mm |
| Take-up power: | 15kW Frequency Motor |
| Laying-out power: | 2kw Servo Motor |
| Hydraulic station power: | 2.2kw |
| Equipped with fixed length parking device | |
