Vinyl Seawall Panels: U type

Vinyl seawall is one of the best seawall solutions for many waterfront properties, whether residential, commercial, or municipal. Vinyl sheet piles systems are the new standard with many advantages compared to hard wood, concrete and steel sheet piling

Product Description

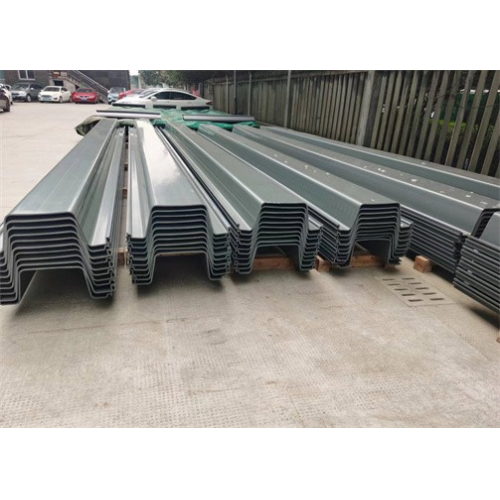

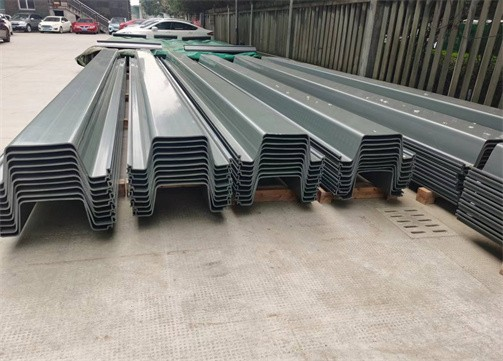

Vinyl Seawall Panels: U type

Vinyl seawall is one of the best seawall solutions for many waterfront properties, whether residential, commercial, or municipal. Vinyl sheet piles systems are the new standard with many advantages compared to hard wood, concrete and steel sheet piling. Vinyl sheet piles are made of poly vinyl chloride also known as PVC a material with excellent resistance to weather influences and it has a long service life.



COST-EFFECTIVE: Vinyl seawall is easy to maintain and requires little maintenance.

ROT-RESISTANT: Saltwater wont negatively impact vinyl seawall.

UV PROTECTION: Excess sun and heat can weaken other materials, but not vinyl.

DURABLE: Vinyl seawall can last over 50 years. Because it is resistant to the issues that can damage other seawalls, such as rot, sun, and marine boring creatures, vinyl seawall will last much longer than seawalls composed of other materials.

EASY TO INSTALL: Because the product is uniform and lightweight, vinyl seawall and vinyl pilings are easier to install than other materials.

We carry both z-profile, u-profile and w-profile panels in a variety of thicknesses and strength ratings to meet your project needs.

VINYL SEAWALL PANELS PARAMETERS

Material PVC
    Section Width 606 mm
Section depth 230 mm
Length Customization
Thickness 8/9 mm
Package Customization
Color Grey/customization
Weight 13.95±1 kg/m
Moment of inertia 12766 cm4/m
Section modulus 1076.8 cm3/m
Tensile Strength 42 Mpa
Flexural Strength 65 Mpa
Modulus of Elasticity 2650 Mpa
Notched Izod impact 6.5KJ/M2
Heat Deflection Temperature 80℃
